100,000 SQ. FT. Facility

Tour

our state-of-the-art facility

manufacturing

Made in the USA
No Brokers
No Counterfeits

footprint

100,000 Square Foot
Factory Floor

Security

ITAR Registered Security

schedule

24 Hours (3 Shifts)
5 Days/Week

output

100,000 Square Feet/Month

Automated Press Lines
Three hot presses, two cool presses, depinner, and transport.
Drill/Rout/Fabrication
7 Hitachi Drills, 3 Excellon Drills, 3 Hitachi Routers, 2 Excellon Routers, Pluritec X-Ray Drill, 3 Accusystems Score Machines, Optec InnerVision, Optec VicMic, Accuage CMM, REL Beveler, Milling Machine
Soldermask/Legend
Our LPI process includes state-of-the-art LED direct imaging capabilities, incorporates multiple coating methods, and provides advanced via plug options to meet current and future design requirements. Our silkscreen process incorporates direct legend printing application to optimize marking efficiency and legibility.
ET/Final/Shipping
5 Bed of Nail Fixture Testers, 9 Flying Probe Testers, Optec VideoMic, Contamination Tester, Bubble Wrapper, Box Taping
Admin Offices
An outside view of Calumet Electronics administrative offices located at our manufacturing facility in Calumet, MI.
Production Facility

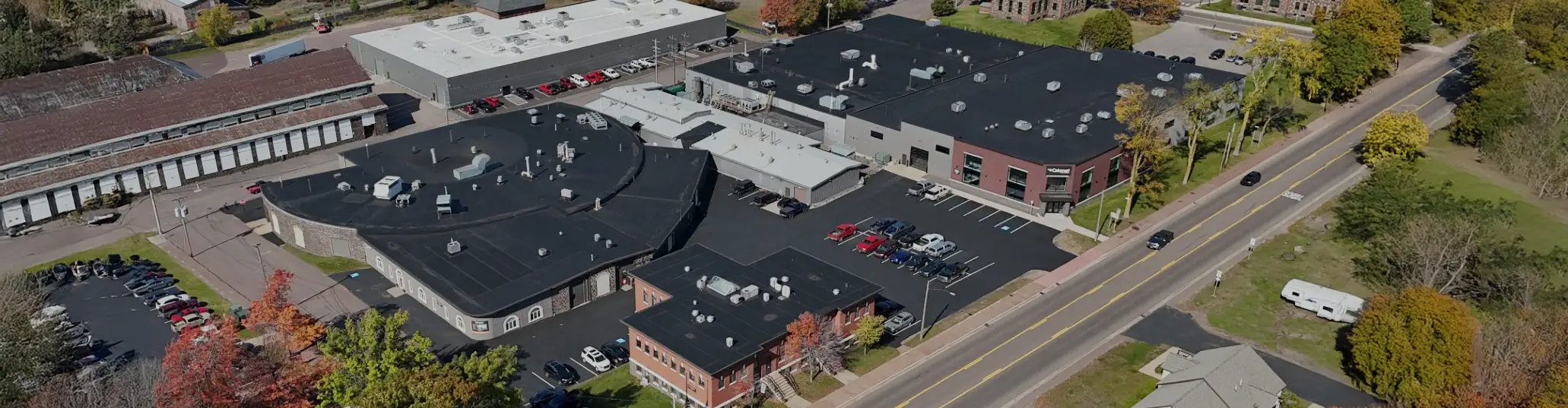

An aerial shot of our 100,000 SqFt production facility in Calumet, MI.
Customer Inventory Management
We stock over $1,000,000 of completed customer inventory, allowing delivery in transit time after orders are placed.
Final Mechanical Verification
Customer fabrication drawings are programmed into an automated mechanical micrometer measuring tool for final mechanical verification.
AOI
The AOI (Automated Optical Inspection) area of the facility contains 2 Orbotech dual-light Fusions and 3 Orbotech Discovery units. Featuring cutting-edge capabilities, Orbotech’s AOI systems deliver consistent results that are faster, more accurate and much more cost-effective than visual inspection, bringing a new level of quality to printed circuit board manufacturing. Powered by field-proven SIP Technology™ to further improve manufacturers’ bottom line results, Discovery, the world’s bestselling AOI, provides Simple, Intelligent and Powerful AOI performance.
Imaging
We have a certified Class 10,000 clean room that includes 4 Laser Direct Imaging Units (LDI), 2 OLEC expose, 3 Laminators, and 1 Film plotter. LDI provides a more consistent and precise image with less margin for defects when compared to a conventional lithography based process.
